جزئیات محصول:
|
| محصول: | مجموعه دیزل ژنراتور Atex Zone 2 Gasfield & Oilfield | گزارش تست کارخانه: | ارائه شده است |
|---|---|---|---|
| قدرت نخست: | 250kVA/200kW | مواد: | فولاد ضد زنگ |
| روش خنک کننده: | بسته آب خنک | سبک روغن کاری: | روغن کاری شده |
| منطقه خطرناک: | منطقه 2/منطقه 2 ایمنی/منطقه 1 | برای منطقه استفاده می شود: | فراساحل و خشکی |
| خدمات: | پشتیبانی فنی ویدیویی | رنگ: | قرمز/سفید/سفارشی |
| برجسته کردن: | 250KVA ATEX explosion-proof diesel generator,Zone 2 Zone 1 diesel genset,50Hz 60Hz explosion-proof generator set |
||

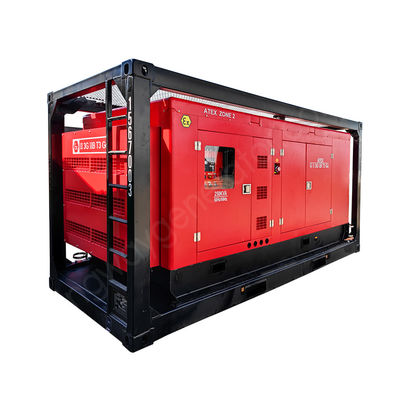

Kingway ATEX Certified Zone 2 Ex Proof equipment is for applications in Hazardous Area ( Zone 2 or Zone 1). The genset products use Cumins or Perkins engine to make the Zone 2 Conversion mounted in the DNV Standards certificate 2.7-1 lifting frame.
Quality & Compliance:
The Kingway Ex product follow the ATEX standard EN 60079 series and EN 1834 series. The equipment will give a
BV BV will do the third party inspection, and will issue the BV third party inspection report, and make the following summary: The equipment is Cmpliant to EN60079 & related ATEX Standards and ATEX Directive 2014/34/EU, and is suitable to be used in Zone 2 IIB T3 Hazardous Area.
| Product name | ATEX Zone 2 Diesel Generator Set |
| Applicable | Hazardous area zone 1/zone 2 |
| Power/Capacity | 250KVA |
| Certification | ATEX, DNV, BV, ROHS |
| Frequency | 50HZ, 60HZ |
| Speed | 1500RPM, 1800RPM |
| Engine brand | Cumins/Perkins |
| Controller | Deepsea/ComAP |
| Installation type | Fixed or portable |
| Starting System | Electric/Hydraulic/Spring Start |
| Operating temperature | -25°C to +60°C |
![]()
![]()
![]()
![]()
![]()
![]()
![]()
